Tyco Amp Superseal Connector Waterproof Plug 281934-3

Product Details:

OEM PN：281934-3

ID NO： W067

Material：Silicone

Seal Type：Single Wire Seal (SWS)

Inquire Now Download

Next Product

Product Description

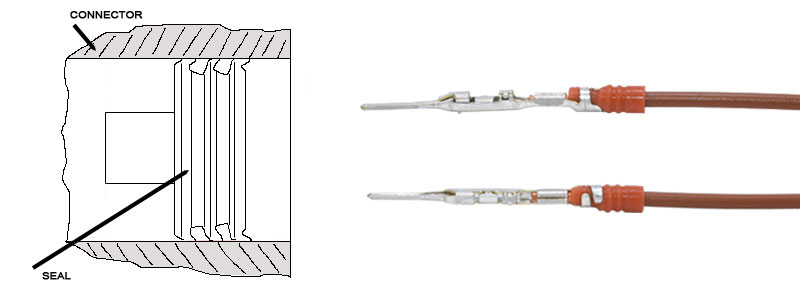

Single Wire Seal (SWS) crimped onto the contact is inserted into the cavity.The wire size is linked to the hole dimension of the SWS and is smaller in diameter in order to have geometrical interference needed to create the sealing.

The material hardness is typically specified as 40-50 Shore A (ShA) durometer. This range is optimal in providing the necessary compression, tear resistance, and durability properties required for the automotive applications.

Tyco Amp Superseal Connector Waterproof Plug 281934-3

Product Name	Single Wire Seal (SWS)
Original Number	281934-3
Material	Silicone
Size	L: 7.5±0.2 ID: 1.8±0.2 OD: 6.1±0.2
Color	Red
Hardness	40±2
Operating Temperature range	-40℃~125℃
Function	Waterproof sealing for Automotive connector and Wiring Harness
Certification	TUV,TS16949,ISO14001 system and RoHS.
MOQ	Small order can be accepted.
Payment term	30% deposit in advance,70% before shipment,100% TT in advance
Delivery Time	Enough stock and strong production capacity ensure timely delivery.
Packaging	1000,2000,5000,10000PCS per bag with label,export standard carton.
Design ability	We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request

Related Electric Connectors : Amp Superseal 1.5

282079-2 282103-1 282080-1 282104-1 282087-1 282105-1

282088-1 282106-1 282089-1 282107-1 282090-1 282108-1

AMP Superseal 1.5 Series Connectors Wire Seal 281934-2 Fits Ducati Cooling Fan And ATV 282080-1

Silicone Wire Seal Connector has nice performance in insulation, aging resistance and water-proof. Good sealing well protect electrical wiring. Silicone material can be made in different color. Min To Max is available to provide OEM service for different designs of rubber product.

Application:

Silicone wire seal works as a good wire connector for electrical parts used in automobile, motorcycle, and many electrical industries. It has good performance for electrical insulation, and superior resistance of water, aging. With special formula design, the silicone wire seal plug are also available to be used in the application of resisting oil, etc.

Features:

1. Cavity Seals 18-20 Gauge

2. Self Lubricating Silicone Seals

3. Excellent ozone resistance

4. Can be fomulated to resist oil, fuel and solvents.

5. Aging resistance: 230℃; Low temp resistance: -40℃

6. Good function of water-proof, sealing, and anti-leakage

Three Ribs To Guard Against Moisture And Dust

7. Seals Will Crimp To Terminals To Insure Proper Alignment

8. Compression resistance.

9. Wearable and Flexibility

Qty 5000pcs Per Pack
