Product Details:
OEM PN:2141156-1
ID NO: W505
Material:Silicone
Contains Lubricant
Seal Type:Single Wire Seal (SWS)

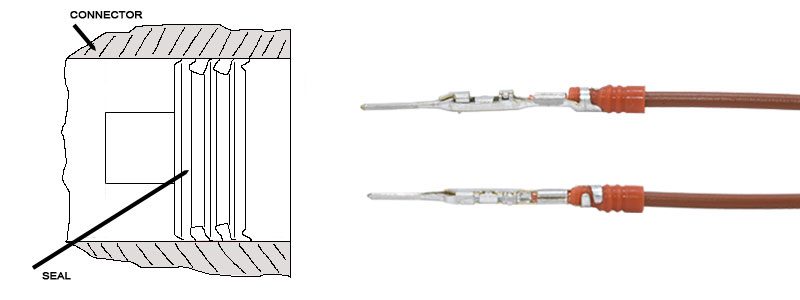

Single Wire Seal (SWS) crimped onto the contact is inserted into the cavity.The wire size is linked to the hole dimension of the SWS and is smaller in diameter in order to have geometrical interference needed to create the sealing.
The material hardness is typically specified as 40-50 Shore A (ShA) durometer. This range is optimal in providing the neces-sary compression, tear resistance, and durability properties required for the automotive applications.
Product Name | Single Wire Seal (SWS) |
Original Number | 2141156-1 |
Material | Silicone |
Size | -- |
Color | Green |
Hardness | 30 Shore A |
Operating Temperature range | -40℃~125℃ |
Function | Waterproof sealing for Automotive connector and Wiring Harness |
Certification | TUV,TS16949,ISO14001 system and RoHS. |
MOQ | Small order can be accepted. |
Payment term | 30% deposit in advance,70% before shipment,100% TT in advance |
Delivery Time | Enough stock and strong production capacity ensure timely delivery. |
Packaging | 1000,2000,5000,10000PCS per bag with label,export standard carton. |
Design ability | We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request |
2141156-1 Green Silicone Single Wire Seal
