15363605 Delphi Automotive Housing Connector Customized Single Wire Seal For AUDI VW

Product Details:

OEM PN：15363605

ID NO： W472

Insulator O.D.：3.2 - 3.7 mm

Size：L:7.80 W:9.0 I:3.20

Color: Grass Green

Material：Silicone

Seal Type：Single Wire Seal (SWS)

Inquire Now Download

Next Product

Product Description

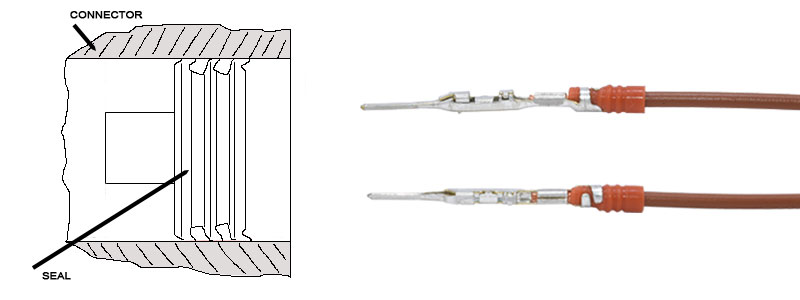

Single Wire Seal (SWS) crimped onto the contact is inserted into the cavity.The wire size is linked to the hole dimension of the SWS and is smaller in diameter in order to have geometrical interference needed to create the sealing.

The material hardness is typically specified as 40-50 Shore A (ShA) durometer. This range is optimal in providing the necessary compression, tear resistance, and durability properties required for the automotive applications.

15363605 Delphi Automotive Housing Connector Customized Single Wire Seal For AUDI VW

Product Name	Single Wire Seal (SWS)
Original Number	15363605
Material	Silicone
Size	L: 7.8 ID: 3.2 OD: 9
Color	Grass Green
Hardness	40±2
Operating Temperature range	-40℃~125℃
Function	Waterproof sealing for Automotive connector and Wiring Harness
Certification	TUV,TS16949,ISO14001 system and RoHS.
MOQ	Small order can be accepted.
Payment term	30% deposit in advance,70% before shipment,100% TT in advance
Delivery Time	Enough stock and strong production capacity ensure timely delivery.
Packaging	1000,2000,5000,10000PCS per bag with label,export standard carton.
Design ability	We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request
